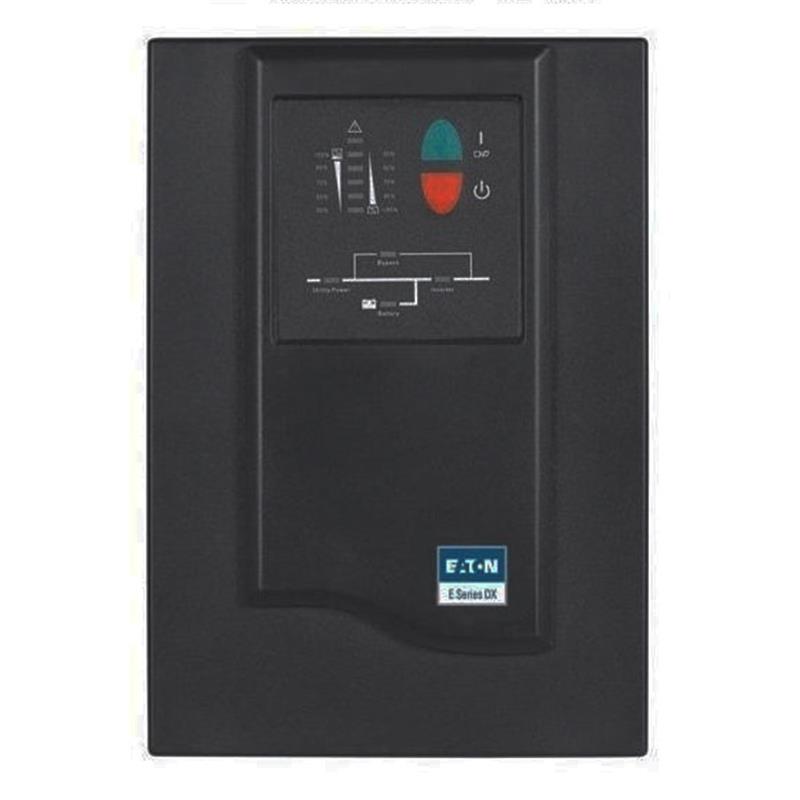

Ups EATON 2kva on-line doble conversion EDX2000H

CODIGO: EDX2000HT | MARCA: Eaton |

Carateristica UPS Eaton EDX2000H

General
Topologia	Online double-conversion IGBT with micro-controller
Configuracion	Tower
Style Number	EDX2000H
Part Number	EDX2000H
Rating (VA/Watts)	2000VA/1400W
UPS Bypass	In-Built Automatic Relay Bypass
Dimensions (H x W x D, mm)	340 x 192 x 460
Weight (kg)	32
Warranty	2 years warranty
Efficiency	>85%

Electrical Input
Connection	(1) IEC-320-C14
Input Voltage Range	122V to 300V
Nominal Voltage	220V
Voltage Range	208/220/230/240V
Frequency	'50/60Hz, auto-detection
Frequency Range	46Hz - 64Hz
Input Power Factor	> 0.95pf
Input Current Distortion	<30% THDi

Electrical Output
Voltages	208/220/230/240V
Nominal Voltage	220V
Voltage Range	208/220/230/240V
Output voltage regulation	±2%
Output Receptacles	(4) IEC-320-C13
Power Factor	0.7
Output Frequency	50 / 60Hz
Load Crest Factor	3:1

Battery

Battery Description	Valve Regulated Lead Acid, AGM
Battery Type	8x 12V, 7.2 Ah
Start On Battery	Unit can be started without being connected to AC utility power -- allows for portable power source
Recharge Time	< 5 hours to recover 90 percent of nominal backup

Communications
User Interface	Led's
LEDs	LED mimic diagram with 4 x LEDs for Utility, Bypass, Inverter & Battery Status,
Audible Alarms	Battery Operation Mode, Low Battery, General Fault, Overload, On Bypass
Communication Ports	1 off Intelligent-Slot (Empty), 1 x RS232 DB9 Serial Port
Power Management Software	WINPOWER power management software, included on CD

Environmental & Standards
Audible Noise	<50dB
Operating Temperature	0°C to 40°C
Safety markings	CE
EMC Markings	IEC/EN 62040-2 Category C3
Markings	CE, C−Tick
Data Line Protection	Input / output jacks included for telephone / modem / internet line surge protection
Storage Temperature	0°C to 40°C
Relative Humidity	5 to 95%, no condensation allowed
Altitude	1000m above sea level
